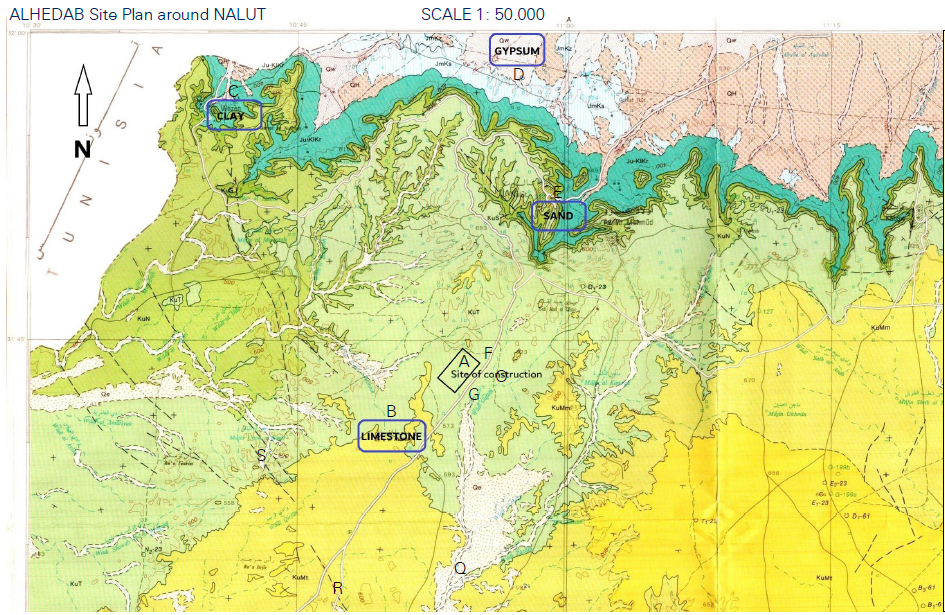

ALHEDAB Site Plan around NALUT SCALE 1: 50.000

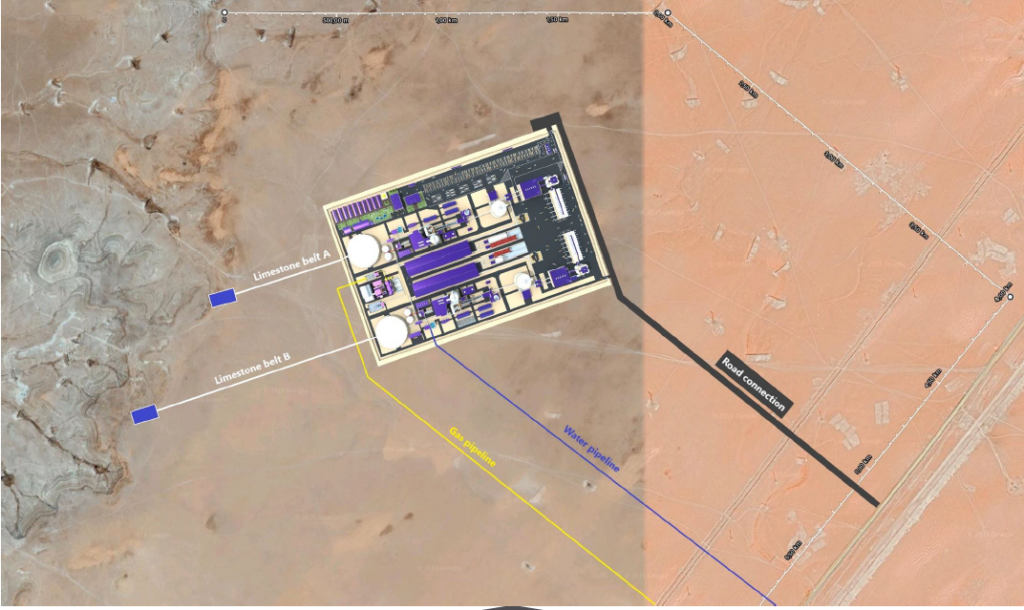

Plant centre point
A 31°43’7.08″N
10°52’54.06″E

Limestone quarry
B 31°42’49.88″N
10°51’53.46″E

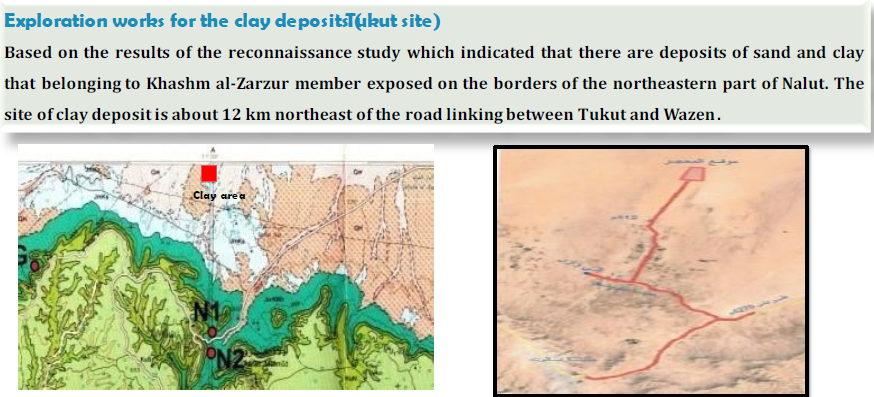

Clay quarry
C 31°51’1.65″N
10°38’17.70″E

Gypsum quarry
D 32° 3’57.78″N
10°57’54.78″E
Sand quarry
E 31°53’0.51″N
11° 1’26.71″E
Gas tapping point
F 31°42’23.03″N
10°53’45.50″E
Water tapping point
G 31°42’13.82″N
10°54’4.21″E
Precise Geo data will be surveyed more

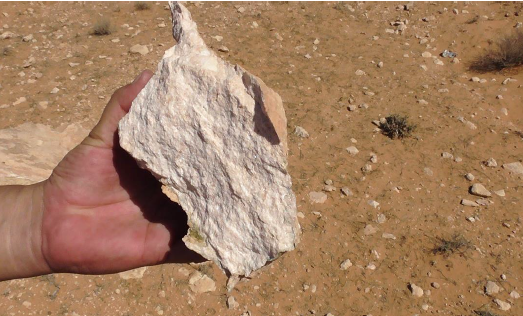

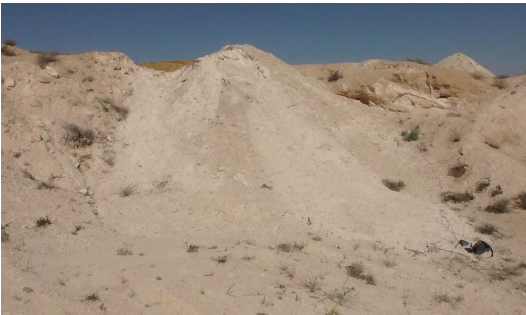

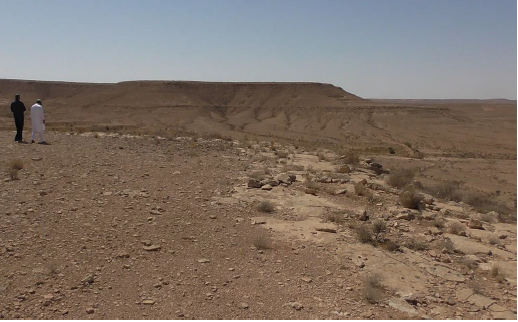

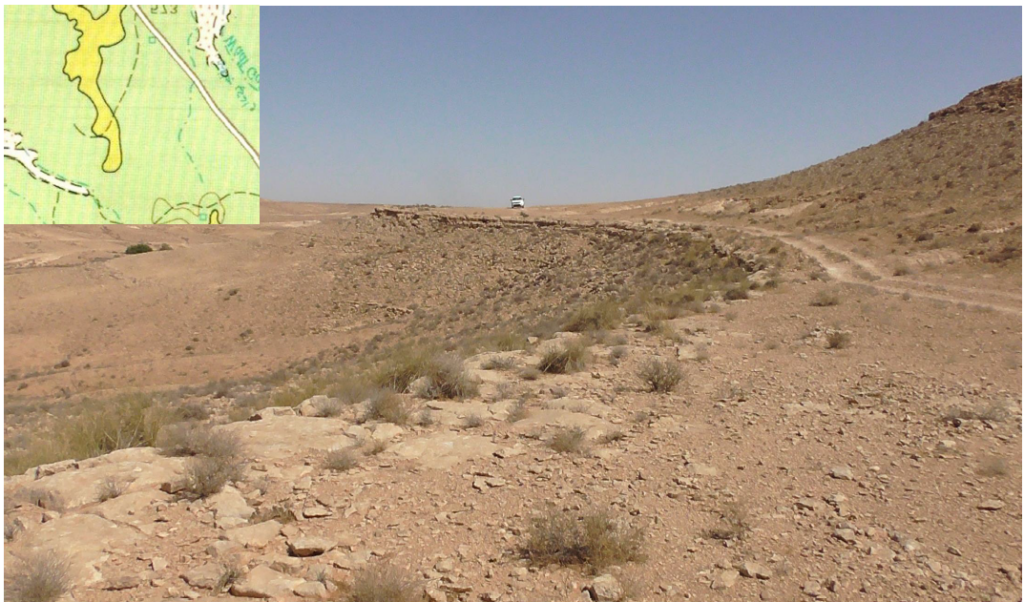

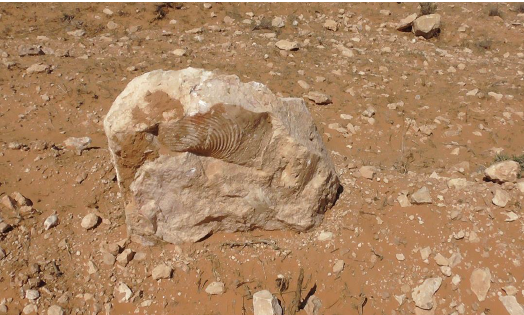

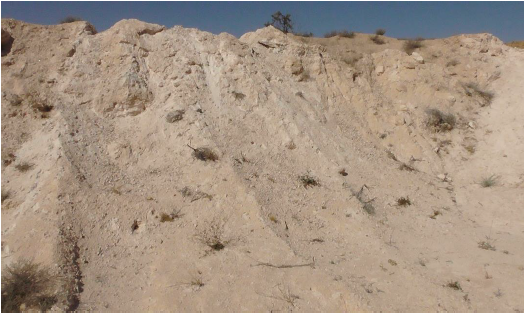

Limestone Soil Formation – Quarry Edge
